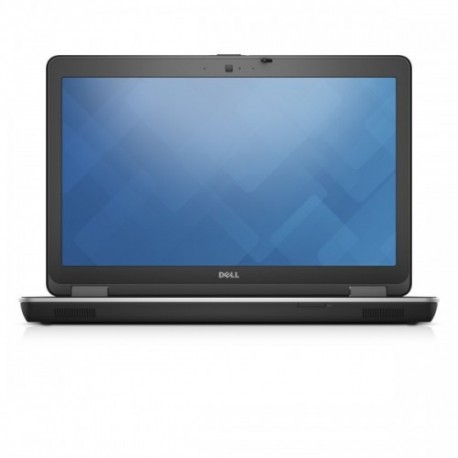

Notebook DELL Latitude 6000 - E6540 6540-2617, Black,Silver
6540-2617
- Display diagonal: 15.6"
- Display resolution: 1920 x 1080 pixels
- Processor: i7-4810MQ 2.8 GHz
- Internal memory: 8 GB DDR3L-SDRAM
- Internal storage: 500 GB HDD
As an Amazon Associate I earn from qualifying purchases.
DELL Latitude E6540 specifications
| Design | |
|---|---|
| Brand | DELL |
| Model | Latitude E6540 |
| Family | Latitude |
| Series | 6000 |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Business |
| Product colour | Black,Silver |
| Display | |
| Display diagonal | 15.6" |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | NO |
| HD type | Full HD |
| Aspect ratio | 16/9 |
| LED backlight | YES |
| Display surface | Matt |
| CPU | |
| Processor frequency | 2.8 GHz |
| Processor family | 4th gen Intel® Core™ i7 |
| Processor model | i7-4810MQ |
| Processor cores | 4 |
| Processor threads | 8 |
| System bus rate | 5 GT/s |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-4800 Mobile series |
| Processor codename | Haswell |
| Bus type | DMI2 |
| Thermal Design Power (TDP) | 47 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| ECC supported by processor | NO |
| Processor package size | 37.5 mm |
| Supported instruction sets | AVX 2.0 |
| CPU configuration (max) | 1 |
| 3D | NO |
| Processor boost frequency | 3.8 GHz |
| Stepping | C0 |
| FSB Parity | NO |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR3L-SDRAM |
| Maximum internal memory | 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 2 x 4 GB |
| Maximum internal memory (64-bit) | 16 GB |
| Memory form factor | SO-DIMM |
| Storage | |
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Card reader integrated | YES |
| Compatible memory cards | Memory Stick (MS),MS PRO,SD,SDHC |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD size | 2.5" |
| Graphic adapter | |
| On-board graphics adapter | YES |
| Discrete graphics adapter | YES |
| On-board graphics adapter model | Intel® HD Graphics 4600 |
| Discrete graphics adapter model | AMD Radeon HD 8790M |
| On-board graphics adapter base frequency | 400 MHz |
| On-board graphics adapter dynamic frequency (max) | 1300 MHz |
| Maximum on-board graphics adapter memory | 1.74 GB |
| On-board graphics adapter ID | 0x416 |
| Discrete graphics adapter memory | 2 GB |
| On-board graphics adapter family | Intel® HD Graphics |
| On-board graphics adapter DirectX version | 11.1 |
| Discrete graphics memory type | GDDR5 |
| Number of discrete graphics adapters installed | 1 |
| Number of discrete graphics adapters supported | 1 |
| Audio | |
| Built-in microphone | YES |
| Number of built-in speakers | 2 |
| Camera | |
| Front camera | YES |
| Ports & connectivity | |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | NO |
| VGA (D-Sub) ports quantity | 1 |
| Combo headphone/mic port | YES |
| Docking connector | YES |
| Microphone in | NO |
| Cable lock slot | YES |
| Cable lock slot type | Kensington |
| S/PDIF out port | NO |
| ExpressCard slot | NO |
| CardBus PCMCIA slot type | NO |
| SmartCard slot | YES |
| Charging port type | DC-in jack |
| Networking | |
| Bluetooth | NO |
| 3G | NO |
| 4G | NO |
| Wi-Fi | YES |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | YES |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| WWAN | YES |
| Optical drive | |
| Optical drive type | DVD±RW |
| Keyboard & Mouse | |
| Numeric keypad | YES |
| Pointing device | DualPoint |
| Windows keys | YES |
| Keyboard backlit | YES |
| Technology | |
| Intel® Wireless Display (Intel® WiDi) | YES |
| Intel Smart Connect Technology | NO |
| Intel® Anti-Theft Technology (Intel® AT) | YES |
| Intel® Smart Response Technology | NO |
| Intel® Identity Protection Technology (Intel® IPT) | YES |
| Intel® Hyper Threading Technology (Intel® HT Technology) | YES |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | NO |
| Intel® Matrix Storage Technology (Intel® MST) | NO |
| Intel® High Definition Audio (Intel® HD Audio) | NO |
| Enhanced Intel SpeedStep Technology | YES |
| Intel® Clear Video HD Technology (Intel® CVT HD) | YES |
| Intel® InTru™ 3D Technology | YES |
| Intel® Insider™ | YES |
| Intel® Quick Sync Video Technology | YES |
| Intel® Smart Cache | YES |
| Intel® AES New Instructions (Intel® AES-NI) | YES |
| Intel Trusted Execution Technology | YES |
| Intel Enhanced Halt State | YES |
| Intel VT-x with Extended Page Tables (EPT) | YES |
| Intel TSX-NI | YES |
| Intel 64 | YES |
| Execute Disable Bit | YES |
| Idle States | YES |
| Thermal Monitoring Technologies | YES |
| Embedded options available | NO |
| Intel Virtualization Technology for Directed I/O (VT-d) | YES |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | YES |
| Intel FDI Technology | YES |
| Intel Rapid Storage Technology | NO |
| Processor ARK ID | 78937 |
| Conflict Free processor | YES |
| Intel® My WiFi Technology (Intel® MWT) | YES |
| Intel® vPro™ Technology | YES |
| Intel Clear Video Technology | NO |
| Intel Flex Memory Access | NO |
| Intel® Secure Key | YES |
| Battery & Power | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 9 |
| AC adapter power | 65 W |
| AC adapter included | YES |
| Cables included | AC |
| Power cord included | YES |
| Dimensions | |
| Weight | 2.36 kg |
| Width | 379 mm |
| Depth | 250.5 mm |
| Height | 33.4 mm |
| Operating system & Software | |
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Bundled software | Dell Webcam Central software |
| Other features | |
| Password protection | YES |
| Manual | YES |
| Certification | BFR/PVC free |
