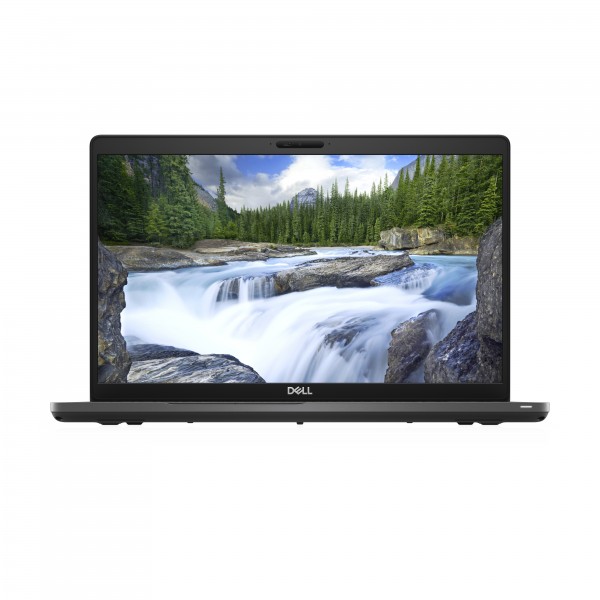

Notebook DELL Latitude 5000 - 5500 WG7XX, Black
WG7XX
- Display diagonal: 15.6"
- Display resolution: 1920 x 1080 pixels
- Processor: i5-8265U 1.6 GHz
- Internal memory: 8 GB DDR4-SDRAM
- Internal storage: 256 GB SSD
As an Amazon Associate I earn from qualifying purchases.
DELL Latitude 5500 specifications
| Design | |
|---|---|
| Brand | DELL |
| Model | Latitude 5500 |
| Family | Latitude |
| Series | 5000 |
| Product type | Notebook |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| Display diagonal | 15.6" |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | NO |
| HD type | Full HD |
| Aspect ratio | 16/9 |
| LED backlight | YES |
| HDMI version | 1.4b |
| Display brightness | 220 cd/m² |
| Pixel density | 141 ppi |
| Contrast ratio (typical) | 700/1 |
| Maximum refresh rate | 60 Hz |
| Dual-screen | NO |
| CPU | |
| Processor frequency | 1.6 GHz |
| Processor family | 8th gen Intel® Core™ i5 |
| Processor model | i5-8265U |
| Processor cores | 4 |
| Processor threads | 8 |
| System bus rate | 4 GT/s |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Bus type | OPI |
| Thermal Design Power (TDP) | 15 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| ECC supported by processor | NO |
| Processor package size | 46x24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Processor boost frequency | 3.9 GHz |
| Configurable TDP-down frequency | 800 MHz |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory (64-bit) | 32 GB |
| Memory form factor | SO-DIMM |
| Storage | |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Card reader integrated | YES |
| Compatible memory cards | MicroSD (TransFlash) |
| Number of SSDs installed | 1 |
| SSD form factor | M.2 |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Total SSDs capacity | 256 GB |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| Graphic adapter | |
| On-board graphics adapter | YES |
| Discrete graphics adapter | NO |
| On-board graphics adapter model | Intel® UHD Graphics 620 |
| Discrete graphics adapter model | NO |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter ID | 0x3EA0 |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter family | Intel® UHD Graphics |
| On-board graphics adapter DirectX version | 12.0 |
| Audio | |
| Built-in microphone | YES |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio Pro |
| Speakers manufacturer | Waves |
| Audio chip | Realtek ALC3204 |
| Speaker power | 2 W |
| Camera | |
| Front camera | YES |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Ports & connectivity | |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | YES |
| Cable lock slot | YES |
| USB 3.1 (3.1 Gen 2) Type-C ports quantity | 1 |
| Number of USB ports with PowerShare support | 1 |
| Charging port type | DC-in jack |
| Networking | |
| Bluetooth | YES |
| 3G | NO |
| 4G | NO |
| Wi-Fi | YES |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | YES |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Optical drive | |
| Optical drive type | NO |
| Keyboard & Mouse | |
| Numeric keypad | YES |
| Pointing device | Touchpad |
| Windows keys | YES |
| Keyboard backlit | YES |
| Keyboard language | Swiss |
| Technology | |
| Intel® Smart Response Technology | YES |
| Intel® Identity Protection Technology (Intel® IPT) | YES |
| Intel® Hyper Threading Technology (Intel® HT Technology) | YES |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | YES |
| Intel® Clear Video HD Technology (Intel® CVT HD) | YES |
| Intel® Quick Sync Video Technology | YES |
| Intel® AES New Instructions (Intel® AES-NI) | YES |
| Intel Trusted Execution Technology | NO |
| Intel Enhanced Halt State | YES |
| Intel VT-x with Extended Page Tables (EPT) | YES |
| Intel TSX-NI | NO |
| Intel 64 | YES |
| Execute Disable Bit | YES |
| Idle States | YES |
| Thermal Monitoring Technologies | YES |
| Embedded options available | NO |
| Intel Virtualization Technology for Directed I/O (VT-d) | YES |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | YES |
| Processor ARK ID | 149088 |
| Intel® My WiFi Technology (Intel® MWT) | YES |
| Intel Clear Video Technology | YES |
| Intel Flex Memory Access | YES |
| Intel® Secure Key | YES |
| Intel Stable Image Platform Program (SIPP) | NO |
| Intel® OS Guard | YES |
| Battery & Power | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| AC adapter power | 65 W |
| AC adapter included | YES |
| Battery capacity (Watt hours) | 68 Wh |
| Power cord included | YES |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Battery weight | 340 g |
| AC adapters quantity | 1 |
| AC adapter output voltage | 19.5 V |
| Battery voltage | 7.6 V |
| AC adapter output current | 3.34 A |
| Dimensions | |
| Weight | 1.82 kg |
| Width | 359.1 mm |
| Depth | 236.2 mm |
| Height (front) | 2.03 cm |
| Height (rear) | 2.2 cm |
| Operating system & Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Trial software | Microsoft Office |
| Operating system language | Multilingual |
| Other features | |
| Password protection | YES |
| Manual | YES |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 105 G |
| Non-operating shock | 40 G |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
11 other laptops in the same category:
-
Hybrid (2-in-1) DELL Latitude 7000 - 7390 H1M58, Black
-
Notebook DELL Latitude 5000 - 5500 NX9MV, Black
-

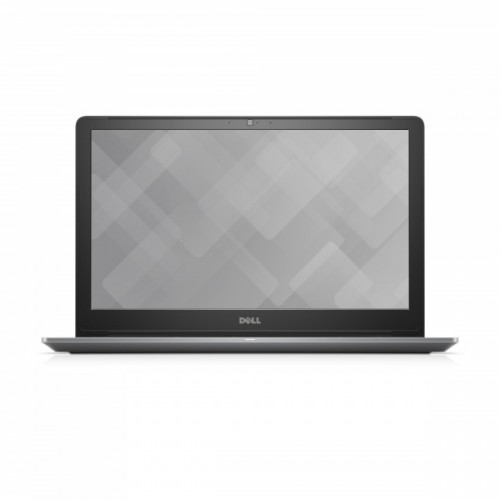

Notebook DELL Vostro 5000 - 5568 V4F8F, Grey
-
